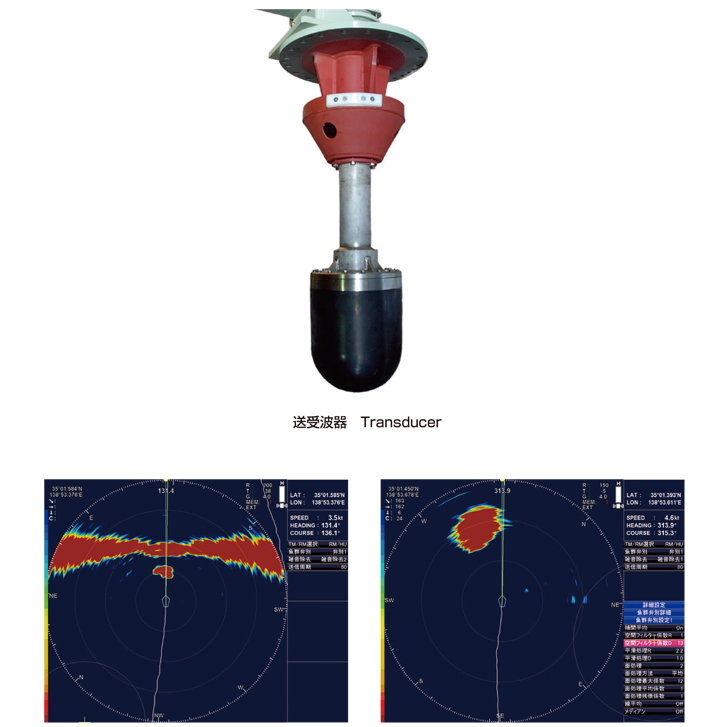

KCH-5180 is suitable for all types of fishing, but is specifically recognised by our customers as 'The Mackerel Sonar'
164khz - 180deg beam
Target tracking
Medium freq. Omni sonar
94khz - 960 element transducer, full TX and RX stabilisation
Target tracking
Recording and playback of sonar images.
Low frequency Omni Sonar
21khz Long range detection
RDT Transmit control
narrow beam 7deg
Fast TX & RX stabilization
10 custom user setiings
Robust hoist for long life

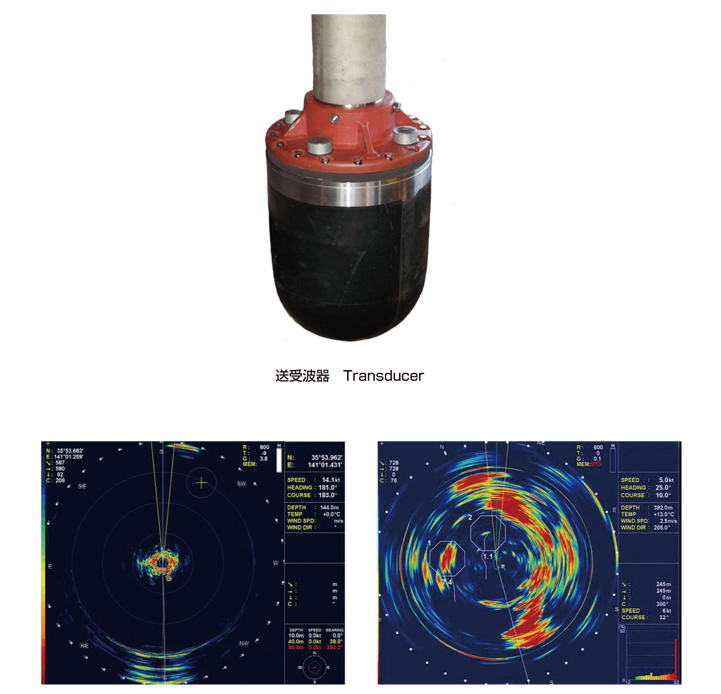

Worlds first compact fully stabilized omni sonar
Fits into 8" sonar chest
512 element transducer
62khz Idea for all fisheries
Same quality of larger Kaijo sonars

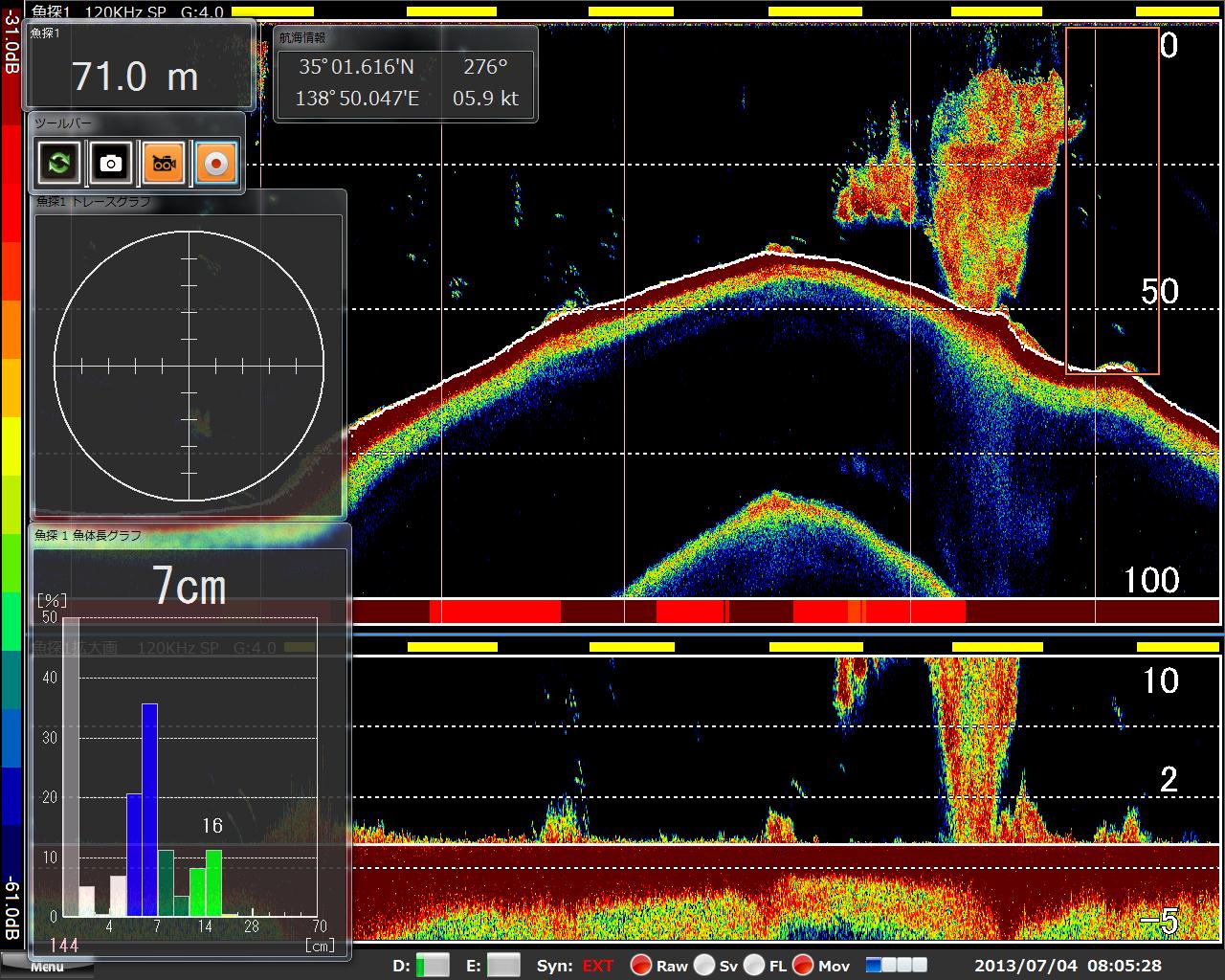

Split beam transducer
15 overlapping beams
Accurate fish size & biomass
Dual screen displays
Olex ground data output
38/70 & 120khz options
Recording and Playback
4 Axis current meter 5 layers
Speed over bottom to 550m
Track speed of fish schools
No calibration required
Echo sounder picture on all four beams
Tidal data output
